Herrera on Hardware:

CPU Boost & Base Clocks

Testing CPUs for CAD, Part 2



By Alex Herrera

In last month’s installment, we took a deeper look at the engineering tradeoffs that shape modern high-performance CPUs. Realities in physics and engineering mean that one choice in CPU design — for example core count — has varying and sometimes counter-intuitive impacts on the other critical performance metrics, such as base and boost frequencies. This month, we pick up where we left off, ready with test platforms — two systems (the BOXX Apexx A3 Denali and Puget Systems' X570-E) and three Ryzen 5000 SKUs — to validate (or not) the expected impact in both the multi-thread and single-thread (1T) workloads common in CAD workflows. On top of the 8C Ryzen 5800X and the 16C 5950X shipped in the the two systems, we also swapped in a third CPU to compare, a 12C 5900X provided courtesy of AMD. See the breakdown of these systems below.

Specifications for the test systems.

More Cores Can Yield Higher Performance, but Not with Every Job

Let’s kick off the test results with the obvious case, comparing multi-threaded performance as core counts rise.

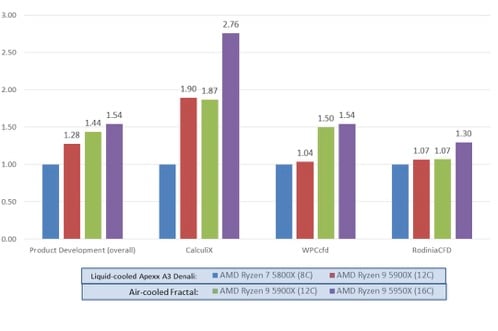

The results running the SPECworkstation 3.0.4 Product Development Suite on the two systems and three Ryzen 5000 CPUs (normalized to the Ryzen 7 5800X on the BOXX Apexx A3 Denali).



As shown by the results (above) running the SPECworkstation 3.0.4 Product Development test suite, representing multi-threaded workloads common to CAD workflows, the SKUs with more cores provided higher performance. The improved performance is consistent, moving up from the 8C (eight core) AMD Ryzen 7 5800X up to the 16C AMD Ryzen 9 5950X, with the Ryzen 9 5950X outperforming the Ryzen 7 5800X by 54% (and that’s with Ryzen 7 using the air-cooled system and the Ryzen 9 using liquid-cooled).

The gains for the higher core count SKUs come despite some decline in the work completed per core, which declines to some degree, based on that lower base frequency and conflicts in sharing system level resources, such as L3 cache, external memory, storage, and graphics.

Still, the conclusion is clear: if your CAD work is dominated by multi-threaded workloads — such as simulation and rendering, then you should be more concerned about having more cores in your workstation, regardless of how much the base clock drops.



Comparing Single-Thread (1T) Performance for CAD Modeling

The higher-core count Ryzen 5950X besting the two lower-core count Ryzen 5000s on multi-thread capable workloads is not a surprise, despite the former’s lower base clock. The more interesting analysis, and the primary motivation behind this testing exercise, is to compare the single-thread performance as a function of base and boost clocks for our three Ryzen 5000 SKUs. Secondarily, we want to find out how much liquid-cooling might help in a nominally clocked system (ie., not overclocked).

The tests we ran included Cinebench R20 and four components of PassMark Software's Performance Test 10, the latter selected for their particular relevance in CAD workflows: physics, compression, and floating-point. All five were run with systems constrained to execute only one thread at a time. The first, albeit not surprising, take-away is the tight grouping of the results. It’s fair to ask, why you would want to weigh such differences when they’re so small, with no more than a 4% range across tests and SKUs (normalized to the 8C, liquid-cooled AMD Ryzen 7 5800X). Hold that thought though, until we look at how boost spec is defined.

More than assessing the magnitude of the differences, this analysis determines which CPUs under which type of cooling performed the best on 1T workloads.

Specifically, did it track base frequency or boost frequency? And, if more closely tracking boost frequency, did the increased efficacy of a liquid-cooled system appear to help the CPU maintain a higher boost for longer amounts of time? Find out more!  Read more »



Alex Herrera is a consultant focusing on high-performance graphics and workstations.
